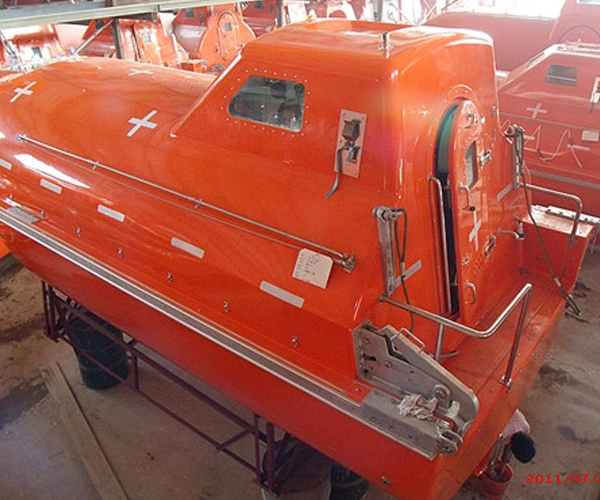

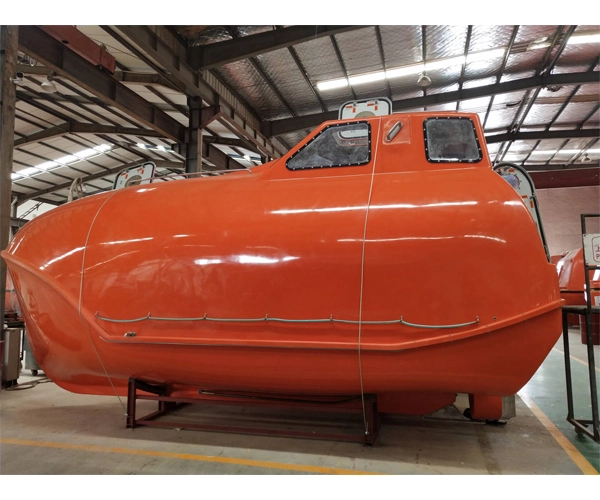

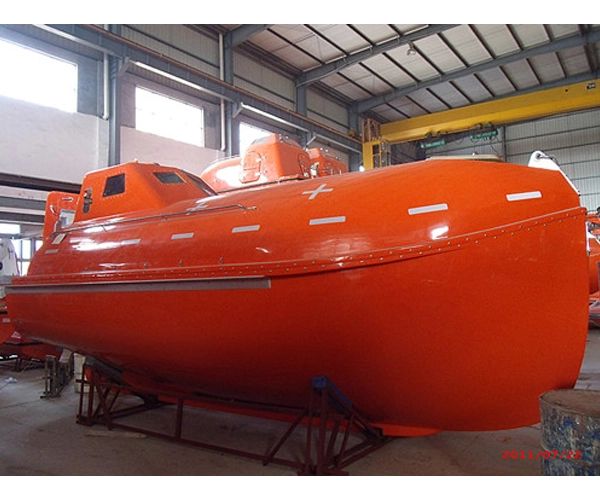

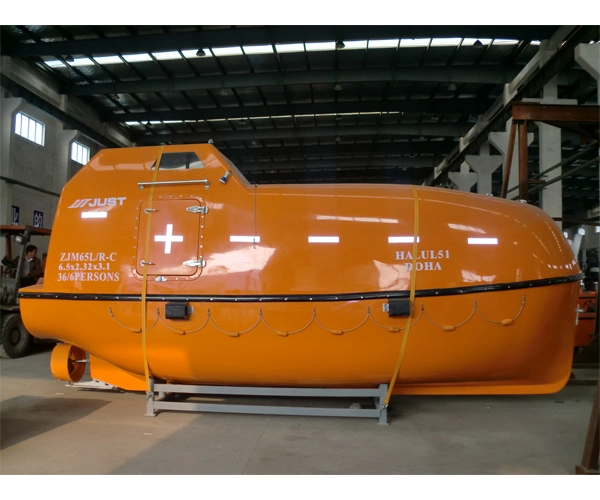

Free fall lifeboat are usually installed on specialized hangers or release devices of ships. When it is necessary to release, use gravity or mechanical devices (such as hydraulic devices, pneumatic devices, etc.) to quickly detach the lifeboat from the ship and fall into the water. For example, some free fall lifeboat use a quick release hook on the hanger to release the connection with the ship after triggering, and rely on their own gravity to quickly fall into the water along the slide. This rapid throwing method can save valuable time in emergency situations and enable the lifeboat to be put into use as soon as possible.
Model | Main Dim(M) | Capacity( persons) | Speed (knots) | Drop height(M) | Total weight(kgs) |
49C | 4.90x2.36x3.0 | 16 | >=6 | 16 | 3955 |
49F | 4295 | ||||
59C | 5.90x2.36x3.0 | 21 | >=6 | 16 | 4520.5 |
59F | 4940.5 | ||||
66C | 6.60x2.75x3.1 | 30 | >=6 | 20 | 6315 |
66F | 6315 | ||||
68C | 6.80X2.70X1.20 | 33 | >=6 | 20 | 6322 |
68F | 6622 | ||||
75C | 7.50X2.70X1.20 | 36 | >=6 | 18 | 7100 |
75F | 7450 | ||||
85C | 8.80X2.94X1.20 | 48 | >=6 | 25 | 8750 |
85F | 9050 |
Products Details:
1. Type: Life Boat
2. Material: GRP
3. Color: Orange
4. Standard: ISO, CCS, BV, DNV, ABS, GL, LR, RINA, NK
5. Capacity: 16- 48 Persons
