Type | Capacity | Length | Width | Height | Weight | Container size |
D-12 | 12 | 2990 | 2990 | 1750 | ≤137 | 690×1285 |
D-15 | 15 | 3300 | 3300 | 1850 | ≤153 | 700×1275 |
D-16 | 16 | 3430 | 3430 | 1950 | ≤163 | 700×1275 |
D-20 | 20 | 3780 | 3780 | 2100 | ≤188 | 790×1390 |
D-25 | 25 | 4180 | 4180 | 2250 | ≤211 | 790×1390 |
Scope of application: Used on international navigation vessels
Product standard: Complies with the Statutory Inspection Rules for Ships and Offshore Facilities of the Ship Inspection Bureau of the People's Republic of China
Accessory equipment: A Pack or B Pack (for short-range international vessels).

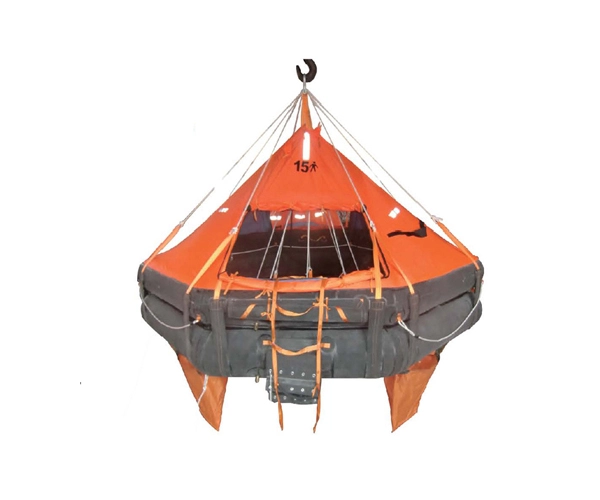

Inflation method: Using the crane launching device on the ship, the ship's outer hull is inflated and formed. After personnel enter, it is lowered to the sea surface. In case the crane launching device cannot be used, it can still be automatically inflated and deployed according to the inflation method of the throwing type inflatable life raft.
Maximum storage height: installation height 18-36 meters above the water surface
Certificate: China Classification Society CCS Type Approval Certificate
German Classification Society (DNV-GL) EC Type Approval Certificate
