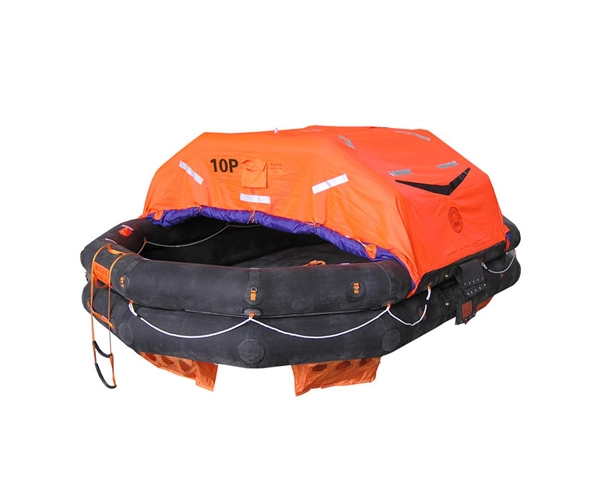

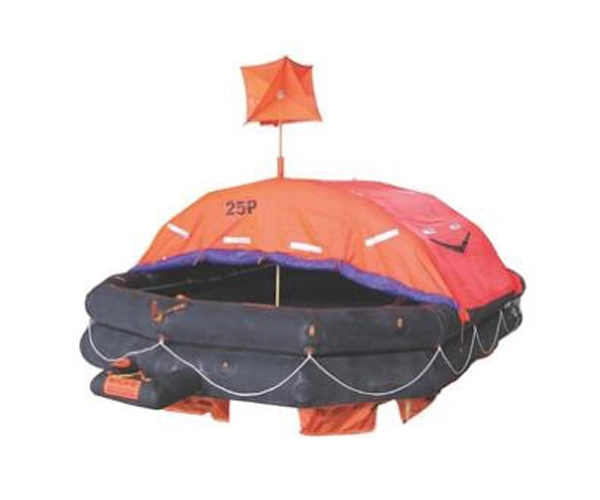

The throwing inflatable life raft is an important marine life-saving equipment. Usually made of rubber or other high-performance airtight materials. These materials have good wear resistance, seawater corrosion resistance, and aging resistance. The raft body is generally circular or elliptical in shape, with multiple independent chambers inside. This multi chamber design is designed to improve the safety of the life raft, so that even if one chamber is damaged, the other chambers can still maintain the buoyancy of the life raft.

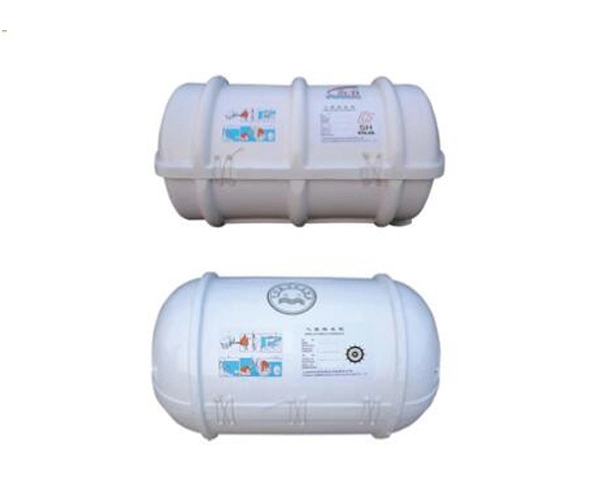

Model | Capacity (Person) | Length (mm) | Width (mm) | Height (mm) | Weight (Kg) | F.R.P Container (cm) | ||
A PACK | B PACK | A pack | B pack | |||||
A-6 | 6 | 2175 | 2175 | 1250 |
|
| 110*64 | 110*61 |
A-10 | 10 | 3245 | 2295 | 1300 |
|
| 115*71 | 110*64 |
A-12 | 12 | 3555 | 2455 | 1330 |
|
| 115*71 | 110*64 |
A-15 | 15 | 4110 | 2700 | 1350 |
|
| 125*71 | 115*71 |
A-16 | 16 | 4110 | 2700 | 1350 |
|
| 125*71 | 115*71 |
A-20 | 20 | 4585 | 3000 | 1570 |
|
| 135*71 | 125*71 |
A-25 | 25 | 5075 | 3325 | 1700 |
|
| 140*75 | 135*71 |
A pack or B Pack (Ships engaged on short international voyage)
After throw-over from ship, the life raft can be inflated and opened automatically.
The installation height is 18-36M from water surface.
China classification society (CCS) certificate
Certificate of Type approval Register of Fishing vessel of P.R.C (ZY)
(GL) EC Type Examination certificate
