Bower Anchor

Name: Bower Anchor
Brand: Zhenjiang Normanship Co., Ltd.

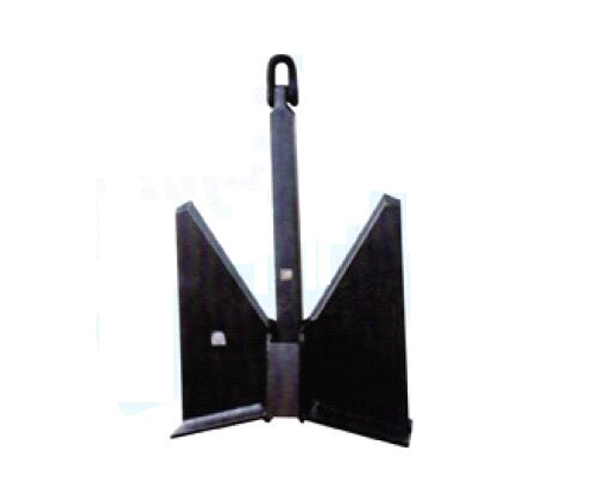

The head of the bower anchor features two stable, wide anchor jaws, typically arranged symmetrically in a "V" shape with a broad opening. This design ensures a more even grip on the seabed and is well-suited for various seabed types, including sand, mud, and small gravel, providing reliable anchorage across different underwater terrains.

GET A QUOTE

Specifications of Bower Anchor

Nominal Weight (kg)	Dimensions (mm)
Nominal Weight (kg)	A	B	C	D	E	F
12	325	275	252	65	383	155
20	385	325	298	75	455	185
25	410	350	318	80	485	200
40	480	410	372	95	570	235
60	555	470	429	110	655	270
80	608	515	470	120	720	295
100	655	555	506	130	775	320
120	698	595	540	135	825	340
160	765	650	592	150	905	370
180	795	675	615	155	940	385
200	825	700	640	160	978	400
240	880	745	680	175	1,040	425
280	925	780	715	180	1,092	450
320	964	820	745	190	1,140	470
360	1,005	855	780	195	1,190	490
400	1,040	885	805	205	1,230	505
440	1,074	910	830	210	1,270	520
480	1,105	940	855	215	1,305	535
520	1,133	960	875	220	1,340	550
560	1,165	985	900	230	1,375	565
600	1,190	1,010	920	235	1,410	580
640	1,216	1,035	940	240	1,440	590
720	1,265	1,075	978	250	1,495	615
800	1,313	1,115	1,015	255	1,550	635
900	1,365	1,160	1,055	270	1,615	665
1,000	1,410	1,200	1,090	275	1,670	670
1,250	1,520	1,290	1,175	300	1,800	740
1,500	1,615	1,370	1,250	315	1,910	785
1,750	1,705	1,445	1,320	335	2,015	830
2,250	1,850	1,570	1,430	360	2,185	900
2,500	1,920	1,630	1,485	370	2,265	920
2,655	1,954	1,664	1,516	372	2,312	925
2,835	1,996	1,700	1,550	380	2,364	945
3,040	2,042	1,735	1,585	390	2,418	968
3,240	2,086	1,773	1,620	398	2,471	988
3,445	2,129	1,809	1,653	406	2,522	1,009
3,670	2,174	1,847	1,689	415	2,575	1,030
3,940	2,226	1,892	1,730	425	2,637	1,055
4,210	2,276	1,934	1,768	434	2,696	1,078
4,500	2,328	1,978	1,808	444	2,757	1,103
4,840	2,385	2,026	1,852	455	2,824	1,130
5,175	2,439	2,072	1,894	465	2,889	1,155
5,515	2,491	2,116	1,934	475	2,950	1,180
5,850	2,541	2,159	1,973	485	3,009	1,204
6,225	2,594	2,204	2,014	495	3,072	1,229
6,525	2,635	2,239	2,046	503	3,121	1,248
6,975	2,695	2,290	2,092	514	3,190	1,276
7,425	2,751	2,337	2,136	525	3,258	1,303
7,875	2,805	2,384	2,178	535	3,323	1,329
8,325	2,858	2,428	2,219	545	3,385	1,354
8,775	2,908	2,471	2,258	555	3,445	1,378
9,225	2,958	2,512	2,296	564	3,502	1,401
9,675	3,004	2,553	2,333	573	3,558	1,423
10,125	3,050	2,592	2,369	582	3,613	1,445
10,575	3,095	2,630	2,403	590	3,666	1,466
12,075	3,235	2,748	2,512	617	3,831	1,533
13,350	3,345	2,842	2,598	634	3,962	1,585
14,100	3,406	2,895	2,645	649	4,035	1,614
15,400	3,508	2,981	2,724	669	4,155	1,662
